Choosing the best pool automation relay expansion module depends on your existing system, control needs, and budget. The top pick, the Jandy 6581 AquaLink RS, offers reliable integration for larger setups, while the Arduino Pro Opta provides flexible DIY options for tech-savvy users. Standout options like the Pentair IntelliCenter I5PS deliver seamless compatibility with premium automation systems, but come at a higher price point. The main tradeoffs in this category involve balancing ease of use, expandability, and cost. Keep reading for a detailed comparison to find the best fit for your setup.
Complete the kit
Key Takeaways
- The top picks balance performance with ease of installation, favoring systems with plug-and-play features for most users.
- Compatibility with existing automation systems is a key factor, especially when integrating multiple brands or advanced controls.
- Price varies widely, with premium options offering advanced features and budget models focusing on core relay functions.
- DIY-friendly modules like Arduino provide customization potential but may require technical skills and more setup time.
- Durability and build quality are consistent across trusted brands, but cheaper options sometimes lack long-term reliability.
| pool automation relay expansion module | Item Weight | Compatibility |
|---|---|---|
| Jandy 6581 AquaLink RS 3 HP Po | 4.2 ounces | AquaLink RS systems |
| Zodiac R0658100 3-HP Relay wit | — | — |
| Pentair IntelliCenter I5PS Exp | 1 pound | i5P to I5PS controllers |
| 520818 COM Port Expansion Modu | — | Pentair IntelliTouch, EasyTouch |
| Arduino Pro Opta Expansion Mod | 7.8 ounces | — |
| Zodiac 5098 Relay Splitter Rep | 18.14 g | — |
| Swimables 143T145A Intermatics | — | Intermatics, Hayward, Pentair |
| Pentair IntelliFlo3 VSF Pool P | — | — |
More Details on Our Top Picks
Jandy 6581 AquaLink RS 3 HP Pool & Spa Control System Relay With Harness
This relay stands out for its seamless compatibility within AquaLink systems, making it the top choice for existing AquaLink users who want reliable control over pumps up to 3 HP. Compared to the Zodiac relay, the Jandy offers a straightforward integration for AquaLink setups, but it is limited to that system and lacks smart features. Its compact size facilitates versatile installation in tight spaces, and its support for high-current equipment ensures dependable operation. However, it’s not suitable for users with systems outside AquaLink or those seeking smart connectivity or advanced features. This relay is ideal for homeowners who prioritize proven compatibility and straightforward functionality in their AquaLink-based pools.
Pros:- Compatible with AquaLink systems for easy integration
- Supports pool pumps up to 3 HP and equipment up to 25 Amps
- Compact size for versatile installation
Cons:- Limited to specific AquaLink systems, reducing flexibility
- Requires technical installation skills without plug-and-play convenience
Best for: Homeowners with AquaLink automation systems needing reliable, straightforward relay control for high-power pumps.
Not ideal for: Users with non-AquaLink systems or those wanting smart, Wi-Fi-enabled controls, since this relay lacks connectivity features.
- Product Dimensions:4.29 x 3.62 x 2.13 inches
- Item Weight:4.2 ounces
- Compatibility:AquaLink RS systems
- Supports:Pool pumps up to 3 HP
- Amperage:25 Amps
- Installation:Requires technical wiring
Our verdict“This relay is best suited for AquaLink users who need a reliable, no-frills control solution for high-power equipment.”
Zodiac R0658100 3-HP Relay with Harness Replacement Kit for Zodiac Jandy Pool and Spa Power Control System
The Zodiac relay with harness offers broad compatibility across multiple Zodiac Jandy models, making it a flexible choice for different pool setups. Unlike the Jandy 6581, it supports remote operation of pumps up to 3 HP and features a screw connector for secure wiring. It’s well-suited for users who want a universal replacement for Zodiac systems, but the installation process can be technical and somewhat complex for novices. While it supports automatic operation and is built in the U.S., it’s not compatible with non-Zodiac systems and requires familiarity with wiring standards. This relay fits best for experienced pool technicians or dedicated DIYers managing Zodiac equipment who need a versatile replacement.
Pros:- Supports multiple Zodiac Jandy models for versatile use
- Includes harness for straightforward installation
- Supports remote pump control up to 3 HP
Cons:- Limited to Zodiac Jandy systems, not universal
- Requires technical wiring knowledge for proper installation
Best for: Experienced pool technicians or DIY pool owners with multiple Zodiac Jandy models needing a reliable, adaptable relay.
Not ideal for: Beginners or users with non-Zodiac systems, as compatibility is limited and installation can be tricky without technical knowledge.
- Connector Type:Screw
- Contact Type:Normally Open
- Mounting Type:DIN Rail
- Wattage:2238 watts
- Power:3-hp
- Country of Origin:United States
Our verdict“This relay is ideal for users seeking a flexible, Zodiac-compatible replacement with remote operation capabilities.”
Pentair IntelliCenter I5PS Expansion Daughter Card – Replacement Part for i5P to I5PS Pool/Spa Automation
The Pentair I5PS expansion daughter card is designed to upgrade existing IntelliCenter systems, transforming i5P controllers into more advanced I5PS models. It’s a compact replacement that enhances automation capabilities without replacing the entire system, making it ideal for users seeking to extend their existing setup. Compared with the simpler relays, this card offers seamless integration and improved control, but it requires technical expertise to install correctly. It’s not a standalone relay and only works within the Pentair ecosystem, limiting flexibility for non-Pentair users. This pick makes the most sense for those who already have an IntelliCenter system and want to upgrade for better performance.
Pros:- Easy to install as a replacement part
- Enhances automation capabilities within Pentair systems
- Compact and space-saving design
Cons:- Limited to specific automation setups, not universal
- Requires technical knowledge for installation
Best for: Pool owners with existing Pentair IntelliCenter systems seeking to upgrade or expand automation features efficiently.
Not ideal for: Users new to automation or those with non-Pentair systems, since this is a replacement part designed for specific controllers.
- Product Dimensions:2 x 2 x 2 inches
- Item Weight:1 pound
- Manufacturer:Pentair
- Model Number:521936Z
- Compatibility:i5P to I5PS controllers
- Installation:Requires technical expertise
Our verdict“This expansion card is best for Pentair users looking to upgrade their existing automation system without replacing the entire controller.”
520818 COM Port Expansion Module for Pentair IntelliTouch & EasyTouch Systems
The Pentair 520818 COM Port expansion module offers a straightforward, plug-and-play way to expand your existing IntelliTouch or EasyTouch control systems. It’s designed for durability and easy installation, providing reliable communication ports without the need for complex wiring. Compared to the previous generation or generic parts, this module provides a stable connection, making it suitable for expanding automation in larger or more complex setups. Its limited scope means it’s not a standalone solution, and it doesn’t add advanced features or customization options. This module makes the most sense for those who already use Pentair automation and need to grow their control capacity with minimal fuss.
Pros:- Easy to install with no modifications needed
- Reliable and stable communication for automation growth
- Durable, weather-resistant construction
Cons:- Limited to compatible Pentair systems
- No added advanced features or customization
Best for: Homeowners with Pentair IntelliTouch or EasyTouch systems looking to expand their automation capacity reliably and easily.
Not ideal for: Users with incompatible systems or those seeking advanced, customizable automation features beyond port expansion.
- Model Number:520818
- Compatibility:Pentair IntelliTouch, EasyTouch
- Installation:Plug and play
- Cable Length:1 foot
- Material:High-quality components
- Durability:Weather-resistant
Our verdict“This expansion module is ideal for existing Pentair system users who need simple, reliable port expansion to support larger automation setups.”

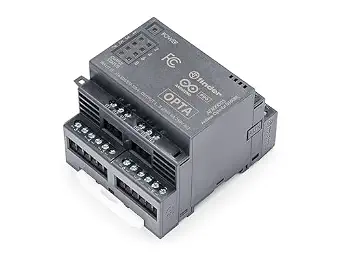

Arduino Pro Opta Expansion Module with 16 Voltage Inputs & 8 Relays
The Arduino Pro Opta expansion module offers an industrial-grade solution for complex automation needs, supporting 16 voltage inputs and 8 relays suitable for real-time control. Its modular design allows connection of multiple extension modules, making it ideal for large or custom automation projects. Unlike the other relays, which focus on pool-specific control, this module supports integration with Arduino and PLC systems, making it highly adaptable for manufacturing or advanced DIY setups. However, it demands familiarity with programming and industrial wiring standards, which can be a hurdle for casual pool owners. This pick is best for professionals or tech-savvy users aiming for extensive, remote-controlled automation beyond basic pool functions.
Pros:- Supports modular expansion with up to 5 extension modules
- Easy integration with Arduino and PLC systems
- Industrial-grade durability for long-term reliability
- Enables remote monitoring via Arduino Cloud
Cons:- Requires familiarity with programming and wiring
- No built-in power supply or enclosure included
- Limited to industrial and automation applications outside standard pools
Best for: Professionals or advanced DIYers designing custom pool automation or industrial control systems seeking flexibility and scalability.
Not ideal for: Casual pool owners or beginners who lack experience with Arduino or PLC programming, as setup and integration can be complex.
- Voltage Inputs:16
- Relays:8 (250VAC, 6A)
- Product Dimensions:3.54 x 2.76 x 2.4 inches
- Item Weight:7.8 ounces
- Manufacturer:Arduino S.r.l.
- First Available:October 31, 2024
Our verdict“This module is best for professionals or enthusiasts seeking high customization and scalability in automation projects involving pools or industrial controls.”
Zodiac 5098 Relay Splitter Replacement Kit for Zodiac Jandy JI Series 2000 Pool and Spa Control System
This relay splitter kit stands out for users who already own a Zodiac Jandy JI Series 2000 control system, offering a straightforward way to activate two relays from a single auxiliary circuit. Compared with more versatile options like the Swimables 143T145A, it’s limited to specific systems but excels in seamless integration and ease of installation within compatible setups. The compact, lightweight design makes it ideal for tight control panels, but its narrow compatibility means it’s not suitable for other brands or models. Installation requires some technical skill, especially since detailed instructions are not included, making it less friendly for DIYers unfamiliar with control systems. This kit makes sense for pool owners who want a simple, system-specific expansion without complex rewiring.
Pros:- Easy to install within compatible Zodiac Jandy systems
- Allows one auxiliary circuit to control two relays, increasing control flexibility
- Compact and lightweight, ideal for tight control panels
Cons:- Limited to specific Zodiac control system models
- No detailed instructions included, requiring technical knowledge for installation
Best for: Pool owners with Zodiac Jandy JI Series 2000 control systems seeking a straightforward relay expansion.
Not ideal for: Homeowners with different pool automation brands or those wanting a universal expansion module, due to its limited compatibility.
- Brand:Zodiac
- Model:5098
- Part Number:5098
- UPC:052337002189
- Weight:18.14 g
- Item Weight:18.14 g
Our verdict“This pick is best suited for users with Zodiac Jandy JI Series systems who need a simple relay splitter without broader compatibility requirements.”
Swimables 143T145A Intermatics Relay Replacement – 24V DC DPST, 25A High-Load Pool Equipment Relay
Compared with the Zodiac 5098 Splitter, the Swimables 143T145A offers a more universal solution capable of handling demanding pool equipment like pumps and heaters. Its high 25A load capacity and compatibility with major brands such as Hayward and Pentair make it ideal for controlling heavier loads without rewiring, unlike the Zodiac kit which is limited to a specific system. However, it only supports 24V DC applications, which narrows its use case and requires careful matching with existing control systems. The durable construction ensures reliable outdoor performance, but it lacks built-in installation accessories, so I’d recommend pairing it with compatible wiring tools. For pool owners seeking a robust, high-capacity relay that can adapt across brands, this model offers a balanced blend of power and flexibility.
Pros:- High 25A switching capacity for demanding pool equipment
- Drop-in replacement requiring no rewiring
- Compatible with major automation brands like Hayward, Pentair, and Intermatics
- Built for outdoor, humid, and hot environments
Cons:- Limited to 24V DC applications, reducing versatility
- No included installation accessories, requiring additional tools
Best for: Pool owners needing a high-load relay that works with multiple automation brands and can handle demanding equipment.
Not ideal for: Buyers with low-voltage systems or those who prefer plug-and-play solutions with included accessories, due to its limited voltage support and missing installation parts.
- Voltage:24V DC
- Current Rating:25A
- Dimensions:2.6″ L x 2.4″ W x 1.9″ H
- Compatibility:Intermatics, Hayward, Pentair
- Switching Capacity:3 HP at 277V, 1 HP at 120V
Our verdict“This relay makes the most sense for owners who need a high-capacity, cross-brand compatible relay for demanding pool equipment setups.”
Pentair IntelliFlo3 VSF Pool Pump I/O Relay Control Board Kit 356365Z
Unlike the other two options, the Pentair IntelliFlo3 VSF relay control board is tailored for integrating remote control features directly into compatible pump systems. It’s a specialized choice that excels at enabling automation for speed and flow adjustments, making it ideal for tech-savvy pool owners who want precise control over pump operation. Installation is straightforward for those familiar with Pentair equipment, but it’s not a universal relay—only compatible with certain Pentair pumps. Compared to the Zodiac splitter, which is a passive expansion, this kit offers active control and automation integration, but at the cost of requiring more technical knowledge. For pool owners with compatible Pentair pumps and a desire for automation customization, this board delivers significant value.
Pros:- Enables remote control and automation integration
- Easy to install into compatible Pentair pump systems
- Reliable OEM replacement part for specific pumps
Cons:- Limited to certain Pentair pump models
- Requires technical knowledge for installation
- No advanced user interface features included
Best for: Owners with compatible Pentair IntelliFlo3 pumps seeking remote control and advanced automation options.
Not ideal for: Those with non-Pentair pumps or less technical DIYers, as installation and compatibility are limited.
- Connector Type:Screw
- Contact Type:Normally Open
- Mounting Type:Panel Mount
- Operation Mode:Automatic
- Contact Material:Silver
Our verdict“This relay control board is ideal for owners with compatible Pentair pumps wanting integrated remote automation and control.”
How We Picked
I evaluated these products based on their compatibility with common pool automation systems, build quality, and ease of installation. Performance in handling high-load pool equipment was a priority, along with flexibility for expansion. I also considered user feedback and the reputation of the brands for reliability and customer support. Products are ranked to reflect a balance between affordability, functionality, and ease of use, ensuring options suit a range of skill levels and system setups.| pool automation relay expansion module | Compatibility |
|---|---|
| Jandy 6581 AquaLink RS 3 HP Po | AquaLink RS systems |
| Zodiac R0658100 3-HP Relay wit | — |
| Pentair IntelliCenter I5PS Exp | i5P to I5PS controllers |
| 520818 COM Port Expansion Modu | Pentair IntelliTouch, EasyTouch |
| Arduino Pro Opta Expansion Mod | — |
| Zodiac 5098 Relay Splitter Rep | — |
| Swimables 143T145A Intermatics | Intermatics, Hayward, Pentair |
| Pentair IntelliFlo3 VSF Pool P | — |
Factors to Consider When Choosing Best Pool Automation Relay Expansion Module
When selecting the best pool automation relay expansion module, it’s important to consider both technical compatibility and practical usability. Your existing control system, the number of relays needed, and future expansion plans can influence your choice. Beyond features, understanding installation complexity and support options helps avoid costly mistakes or incompatibilities. Here are key factors to guide your decision:Compatibility with Your Pool Automation System
Ensuring the relay module works seamlessly with your current control system is essential. Some modules are designed specifically for brands like Pentair or Jandy, providing plug-and-play integration. Others, like DIY modules, may require custom wiring or programming, which can be a barrier for non-technical users. Matching the module to your existing automation setup minimizes installation headaches and future troubleshooting.
Number of Relays and Expandability
Think about your current equipment and potential future upgrades. Modules with more relay channels offer greater flexibility for adding features like additional pumps, lighting, or heaters. However, more relays typically mean higher costs and complexity. Consider your actual needs now and in the near future to avoid paying for unnecessary capacity or, conversely, lacking room for expansion.
Ease of Installation and Setup
For most homeowners, straightforward installation matters more than raw technical capability. Plug-in modules or those with clearly labeled wiring simplify setup. DIY options like Arduino or custom kits may provide customization but demand technical skills and time. Balance your confidence and available time against the complexity of installation when choosing a product.
Build Quality and Reliability
Pool equipment is exposed to moisture, temperature fluctuations, and frequent use, making durability critical. Trusted brands with proven track records tend to deliver more reliable performance over time. Cheaper options might save money upfront but could pose risks of failure or inconsistent operation, leading to costly repairs or downtime.
Price and Value
Budget is always a factor, but it’s important to consider value rather than cost alone. Premium modules often include additional features like advanced diagnostics or remote monitoring, which can justify higher prices. Conversely, simpler modules may suffice for basic setups. Weigh the features against your needs to avoid overpaying for unnecessary capabilities.
Frequently Asked Questions
Can I upgrade my existing pool automation system with a relay expansion module?
Yes, most modern relay expansion modules are designed to enhance existing automation systems. However, compatibility issues can arise if the system is outdated or uses proprietary protocols. It’s advisable to verify the module’s specifications against your control system’s requirements before purchasing. Proper integration can significantly expand your system’s capabilities, but ensuring compatibility is key to a smooth upgrade.
Do I need a professional to install a relay expansion module?
Installation complexity varies depending on the module’s design and your existing setup. Many plug-and-play options are suitable for confident DIYers with basic electrical skills, but more advanced or custom modules may require professional installation. Hiring an electrician ensures safe wiring and proper system integration, especially when dealing with high-voltage components or complex automation systems.
Will a relay expansion module handle high-load pool equipment?
Most reputable relay modules are rated to handle the high current demands of pool pumps, heaters, and other equipment. Check the maximum load ratings specified by the manufacturer to avoid overloads. Using a relay that exceeds your equipment’s power requirements ensures safe operation and prolongs the component’s lifespan.
Are DIY relay modules safe for pool automation?
DIY modules like Arduino or custom-built relays can be safe if properly designed and installed, but they often lack the safety features and certifications of commercial products. Proper isolation, grounding, and adherence to electrical codes are essential. For most homeowners, professionally rated modules offer peace of mind through tested safety standards and reliable performance.
How do I choose between a simple relay module and one with advanced features?
Deciding depends on your control needs and technical comfort level. Basic relay modules suit straightforward automation tasks, offering reliable performance at lower cost. Advanced modules with features like remote monitoring, diagnostics, or expanded inputs are better for integrated systems or future upgrades but come with higher complexity and price. Assess your long-term goals and technical skills before making a choice.
Conclusion
For most homeowners seeking a reliable, straightforward upgrade, the Jandy 6581 AquaLink RS offers excellent compatibility and durability as the best overall choice. Budget-conscious buyers should consider simpler modules like the Zodiac R0658100, which deliver solid performance without breaking the bank. Those with advanced systems or DIY experience may prefer the flexibility of the Arduino Pro Opta or the Pentair IntelliCenter I5PS for seamless integration and future expandability. Beginners will benefit from plug-and-play options with clear instructions, while experienced users should prioritize reliability and customization. Tailor your pick to your existing setup, budget, and technical comfort for the best results in 2026.
